Description
Specifications:
Condition: 100% Brand New
Color: Black
Main Backlight: Blue
Display: LCD Digital
Power Voltage: DC 12V
RPM max display: 15000
Operating temperature: -30 ℃ ~ 80 ℃
Speed max. Display: 199km/h
Odometer distance max display: 99999.9km
Material: ABS Housing + LCD digital display
Functions:
Speed Display(kmh/mph)
RPM Display
Fuel Level Table
Oil pressure warning light
Check engine (warning) light
Water Temperature (coolant temperature)
Show time (hours & minutes)
Metric units switch
Waterproof

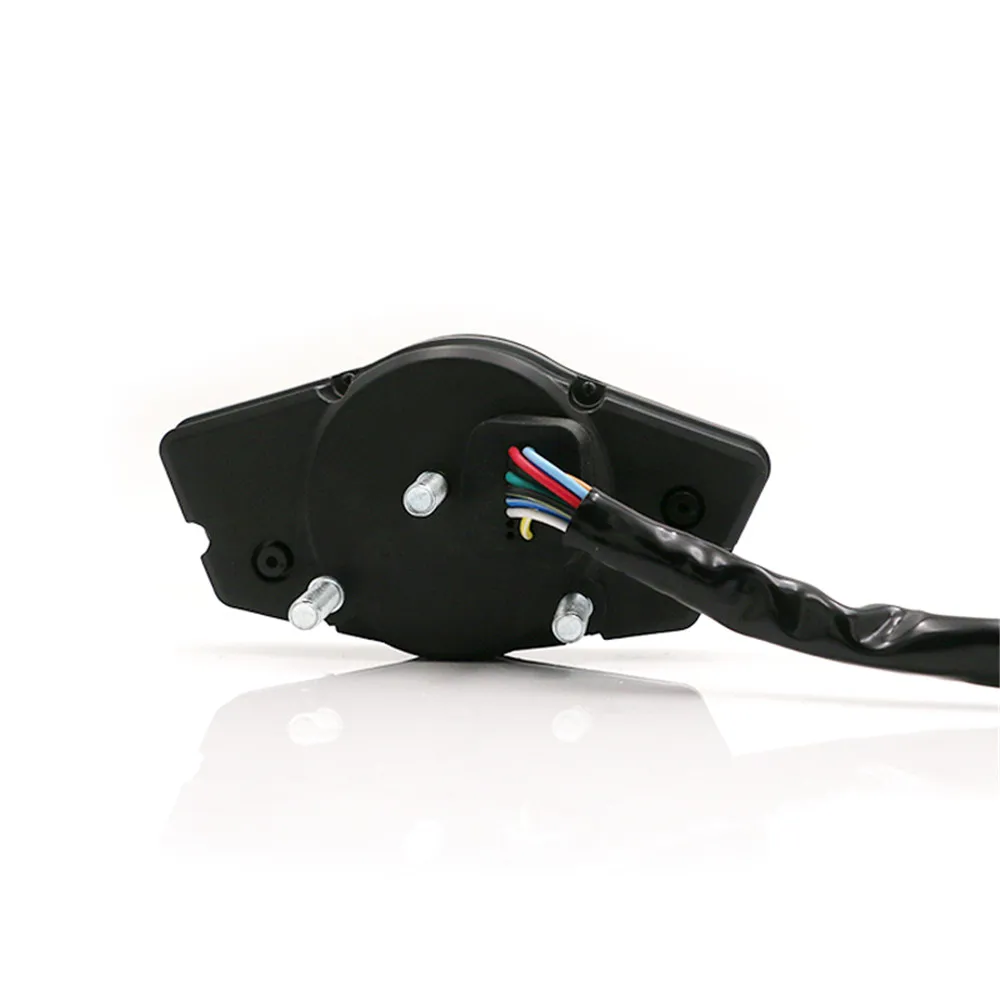

Wiring instructions: (only work with 2 or 4 cylinder)
Orange: left turn signal light
Light Blue: right turn signal light
Dark Blue: low-high beam light
Blue and White: water temperature
Yellow and White: gasoline gauge take unit
Black and Yellow: speed (connected to the engine pulses)
Red: positive
Green: negative
Black: power switch
Green and Yellow: hand brake parking lights
Green, white magnetic induction line
Compatible With: all motorcycles DC 12V
