Description

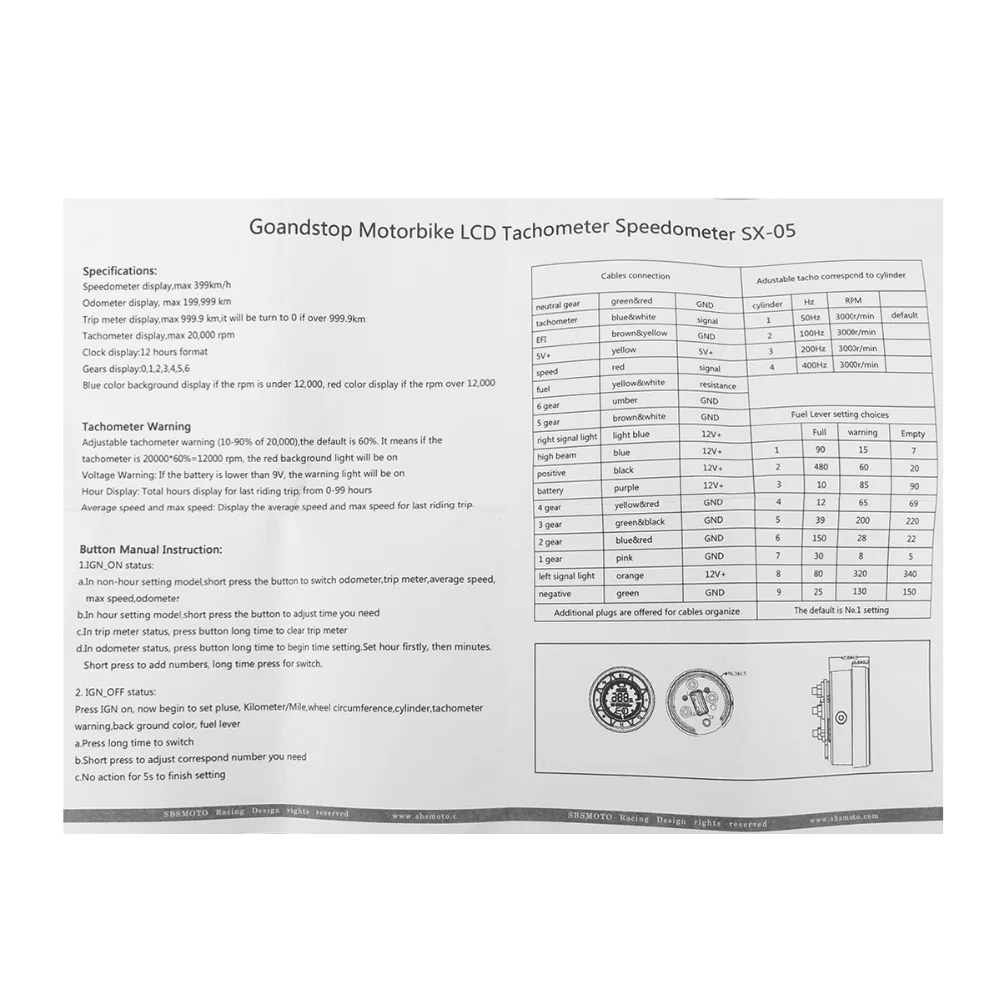

Specifications:

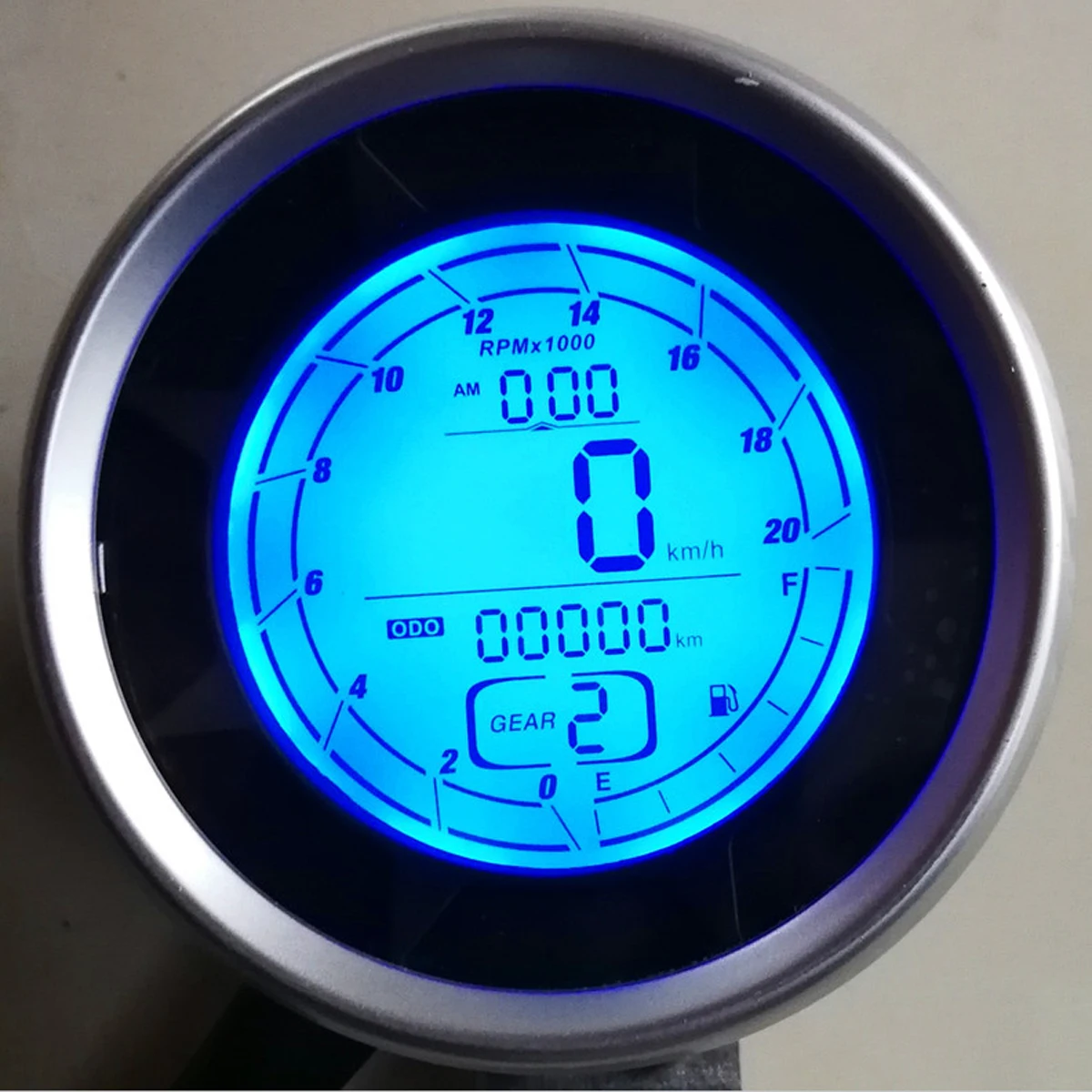

Speedometer display,max 399km/h
Odometer display, max 199,999 km
Trip meter display,max 999.9 km,it will be turn to 0 if over 999.9km
Tachometer display,max 20,000 rpm
Clock display:12 hours format
Gears display:0,1,2,3,4,5,6
Blue color background display if the rpm is under 12,000, red color display if the rpm over 12,000
Tachometer Warning
Adjustable tachometer warning (10-90% of 20,000),the default is 60%. It means if the tachometer is 20000*60%=12000 rpm, the red background light will be on
Voltage Warning: If the battery is lower than 9V, the warning light will be on
Hour Display: Total hours display for last riding trip, from 0-99 hours
Average speed and max speed: Display the average speed and max speed for last riding trip.
Button Manual Instruction:
1.IGN_ON status:
a.In non-hour setting model,short press the button to switch odometer,trip meter,average speed,max speed,odometer
b.In hour setting model,short press the button to adjust time you need
c.In trip meter status, press button long time to clear trip meter
d.In odometer status, press button long time to begin time setting.Set hour firstly, then minutes.Short press to add numbers, long time press for switch.
2. IGN_OFF status:
Press IGN on, now begin to set pulse, Kilometer/Mile,wheel circumference,cylinder,tachometer warning,back ground color, fuel lever
a.Press long time to switch
b.Short press to adjust correspond number you need
c.No action for 5s to finish setting
