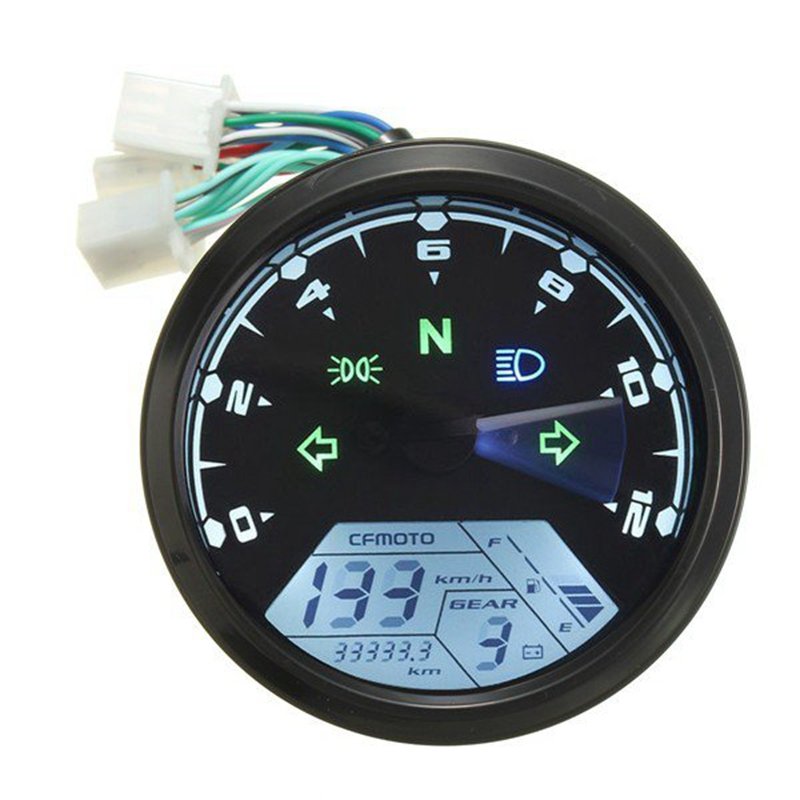

Motorcycle 12000RMP LCD Digital Speedometer 1-4 Cylinders Resistance High Pressure Black Color

$33.00

Brand Name: Audew  Item Weight: 0.39kg  Special Features: Resistance to high pressure  Item Width: 10cm  External Testing Certification: ce  Item Diameter: 9.3cm  Item Height: 7cm  Item Length: 10cm  Material Type: Metal

Category:

Description

Description:
Kilometer and miles switch
It can be apply to different vehicles with different diameter.Can be set for all size of wheel rim.
It can be apply to different displacement vehicles.
Fuel indicator is suit for the oil sensor with 510Ohm (such as Honda ) 100 ohm (such as yamaha), If your motorcycle do not have oil sensor, then, ignore this.
Easy assembly,Uv protection, anti-dazzle.
Resistance to high pressure: instant can withstand voltage 100V.
Waterproof, shockproof, anti-lightning
On the back button switch mileage subtotal.
LED display fuel level, low fuel warnning and blinkerin.
LED shows left and right blinker, and high beam light,gear,Distance, Speed and so on.
Adjustable wheel perimeter.
Fits for all style motorcycle (1 / 2 / 4 Cylinders motorcycle)

Specification:
Fuel Level Table
over speed warning light
Left turing, right turing, headlight indicator
Gear indicator: N, 1, 2, 3, 4, 5, 6
Show time (hours & minutes)
Operating temperature: -20 ° C ~ 70 ° C
Storage temperature: -30 ° C ~ 80 ° C
Size: About 10 x 10 x 7 cm
Working voltage:8-18V
Panel backlight luminescence.
Digital display speed, speed range 0–199km/h or mph,deviation +10%.
Digital display odo distance, distance range 0–99999.9km or miles
Needle display rpm, range 0-12000 r/min RPM,deviation +5%.
Color: Black
Light color:High beam, blue.
Left and right blinker (green).
LCD screen backlight blue, always on.

Plug wire color description:
Violet black: speed
Black: the anode
Light blue: right turn
Dark Blue: beam instructions
Orange: left turn
Yellow and white: neutral
Brown: Small Night Light
Red: positive power supply electric door locks come in positive
Light green pink:1 file
Light green brown:2 file
Light green green: 3 file
Light green yellow: 4 file
Light green black: 5 file
Light green blue: 6 file
Green black:Negative (ground)
Blue white: Oil line

Note:
The default is 1 cylinder,if you set to 2 or 4 cylinder,it can not be changed to 1cylinder!
The rpm could not work if your motorcycle is “Kawasaki” and “Regal Raptor”  with Electronic injection engine.
The yellow black wire of this item is the rpm wire, it should be connected with the positive rigger line of the igniter.
Take the digital English Manual for reference,  if you do not understand to install the Motorcycle Digital Speedometer LCD Digital Odometer.

We suggest you to find the professional people to help you to install.



Package Included:
1 X  LCD Digital Speedometer Odometer
1 X Speed sensor
2 X Magnets
