You are cruising on the Road Glide. Wind in your face. Everything feels right. Then you notice a faint burning smell. Or worse, you accidentally brush your leg against the pipe, and there is no shield there anymore. Just bare metal.
The exhaust heat shield on the Harley-Davidson Road Glide FLTRX is one of those components that does its job invisibly until it fails. When it does, it is not just an aesthetic problem. It is a burn hazard, a comfort issue, and a sign that your exhaust system needs attention.
Here is everything you need to know about why FLTRX heat shields fail, how to spot the problem early, and how to replace it correctly.
How do exhaust heat shields enhance protection in a Road Glide FLTRX?
The heat shield on the Road Glide FLTRX serves three jobs simultaneously.
First, it protects your right leg from radiant heat during slow traffic, parking lot maneuvers, and any situation where your leg is close to the exhaust.
Second, it reduces heat soak into surrounding components, including the fairing panels and electrical wiring that run near the exhaust path.
Third, it manages underbody heat on the FLTRX’s touring-oriented frame layout.
According to Harley-Davidson’s technical service documentation, the FLTRX exhaust system runs extremely close to several heat-sensitive components by design. The shield is not an afterthought. It is an integral part of the thermal management system on the touring platform.

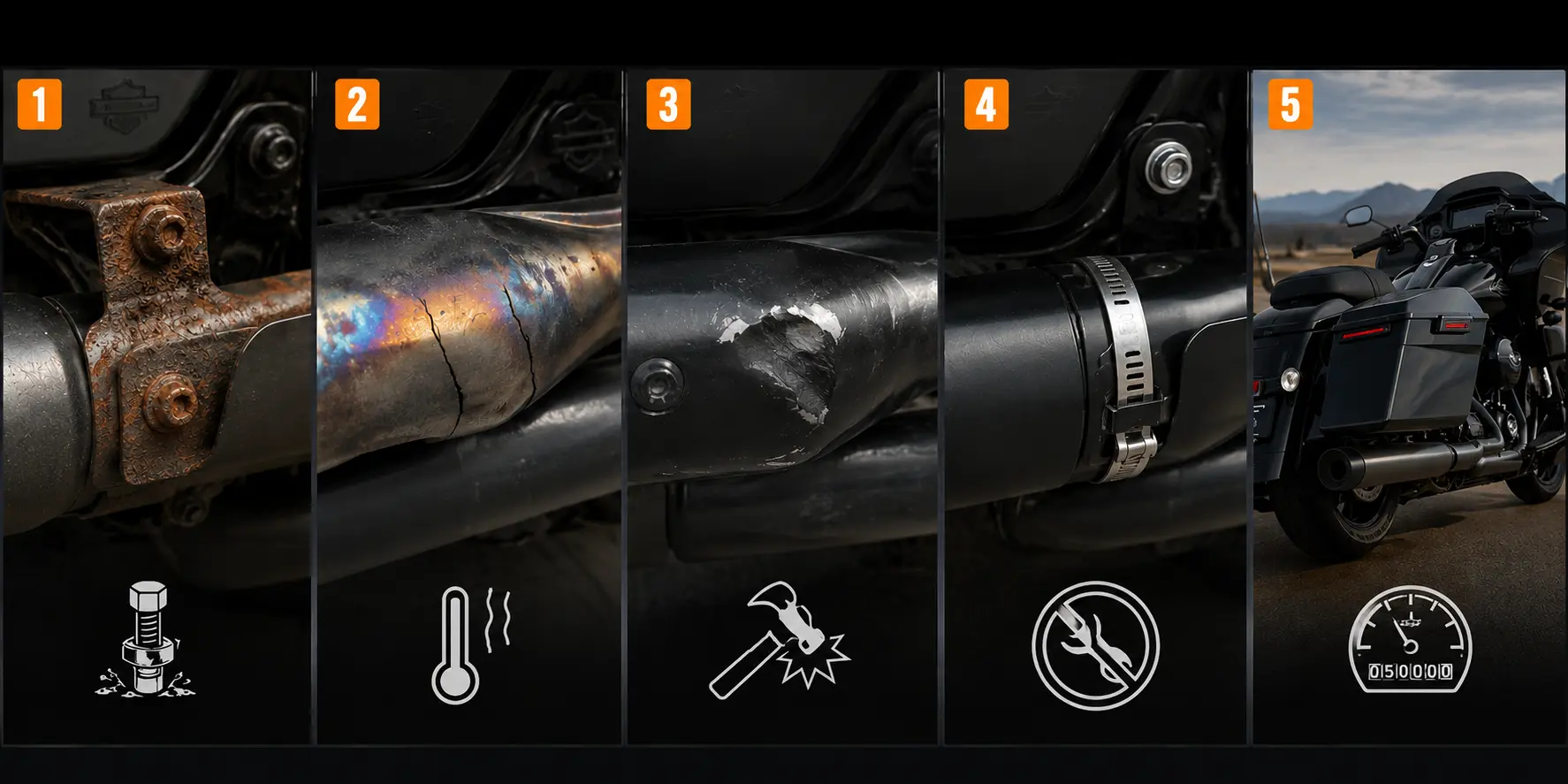

5 Reasons Harley Road Glide FLTRX Exhaust Heat Shields Fail
1. Mounting Bracket Corrosion and Fatigue
The shields attach via stamped steel brackets that are exposed to road salt, water, and heat cycling thousands of times over the life of the bike. On 2018 to 2023 FLTRX models, bracket corrosion is the single most common failure mode reported on touring owner forums, including HOG Chapter technical forums and TourPak King.
The brackets crack at the mounting points first. You will notice the shield is loose or rattling before it separates. Do not ignore that rattle. A shield that is loose is generating vibration stress on both itself and the mounting points with every mile.
2. Heat-Induced Metal Fatigue
The FLTRX exhaust runs hot. That is not a defect. It is the nature of a high-displacement V-twin under load. However, repeated thermal expansion and contraction cycles stress the shield material over time. Hairline cracks develop, particularly at the bends and corners of the shield body.
Once cracking begins, vibration accelerates the failure. What starts as a small crack becomes a full separation within a riding season.
3. Physical Impact Damage
Road debris, curb contacts during low-speed parking, and even incidental contact from luggage loading can dent or deform the shield. A deformed shield that contacts the exhaust pipe creates an intense localized hot spot that accelerates metal fatigue dramatically.
4. Previous Improper Installation
If the shield was removed at any point for exhaust work and reinstalled incorrectly, misaligned contact with the pipe causes the shield to vibrate against the header. That constant contact creates wear that neither the shield nor the exhaust pipe can tolerate indefinitely.
5. Age and Miles on 2018 to 2023 Models
The oldest 2018 FLTRX models are now eight years old with potentially high mileage. Shields on touring bikes that have covered 50,000 or more miles are simply at end-of-service-life regardless of how well the bike has been maintained. Replacement at this stage is normal maintenance, not a repair.
How to Tell If Your FLTRX Heat Shield Needs Replacing Right Now
| Sign | Urgency | What It Means |
| Loose or rattling shield | Replace Soon | Bracket fatigue: mounting failure imminent |
| Visible cracks in shield body | Replace Now | Structural failure, heat exposure increasing |
| Shield missing entirely | Replace Now | Burn risk, legal issue in some states |
| Fading color or rust on shield surface | Inspect Closely | Surface corrosion; check brackets next |
| Burning smell near right side | Inspect Immediately | Possible contact between shield and wiring |
| Rattling only on startup when cold | Monitor | Normal thermal expansion, but watch for worsening |
How to Replace the Harley Road Glide FLTRX Exhaust Heat Shield?
| Safety first: Always let the exhaust cool completely before working near it. Exhaust components retain heat for 30 to 45 minutes after shutdown. On an FLTRX that has been ridden hard, wait longer. |
Tools Required
- 3/8 inch socket set with extension
- T25 and T27 Torx bits
- Thread-locking compound (medium strength)
- Wire brush for cleaning mounting surfaces
- Torque wrench
Step-by-Step Replacement Procedure
1. Let the exhaust cool completely. Minimum 45 minutes after last ride.
2. Locate the shield mounting bolts. On the FLTRX, the heat shield uses two or three mounting points depending on the model year.
3. Remove the mounting bolts using the correct Torx bit. If they are corroded, apply penetrating oil and wait 10 minutes before attempting removal. Do not strip the heads.
4. Clean the mounting surfaces on the exhaust pipe with a wire brush. Remove any rust or debris from the threaded holes.
5. Position the new shield over the mounting points. Confirm it sits flush without contact with the pipe.
6. Apply a small amount of medium-strength thread-locking compound to the mounting bolts.
7. Torque the mounting bolts to the Harley-Davidson specification of 36 to 60 inch-pounds for exhaust heat shield fasteners on the touring platform.
8. Start the bike and let it reach operating temperature. Listen for any rattling or contact noise. Visually confirm the shield position has not shifted.

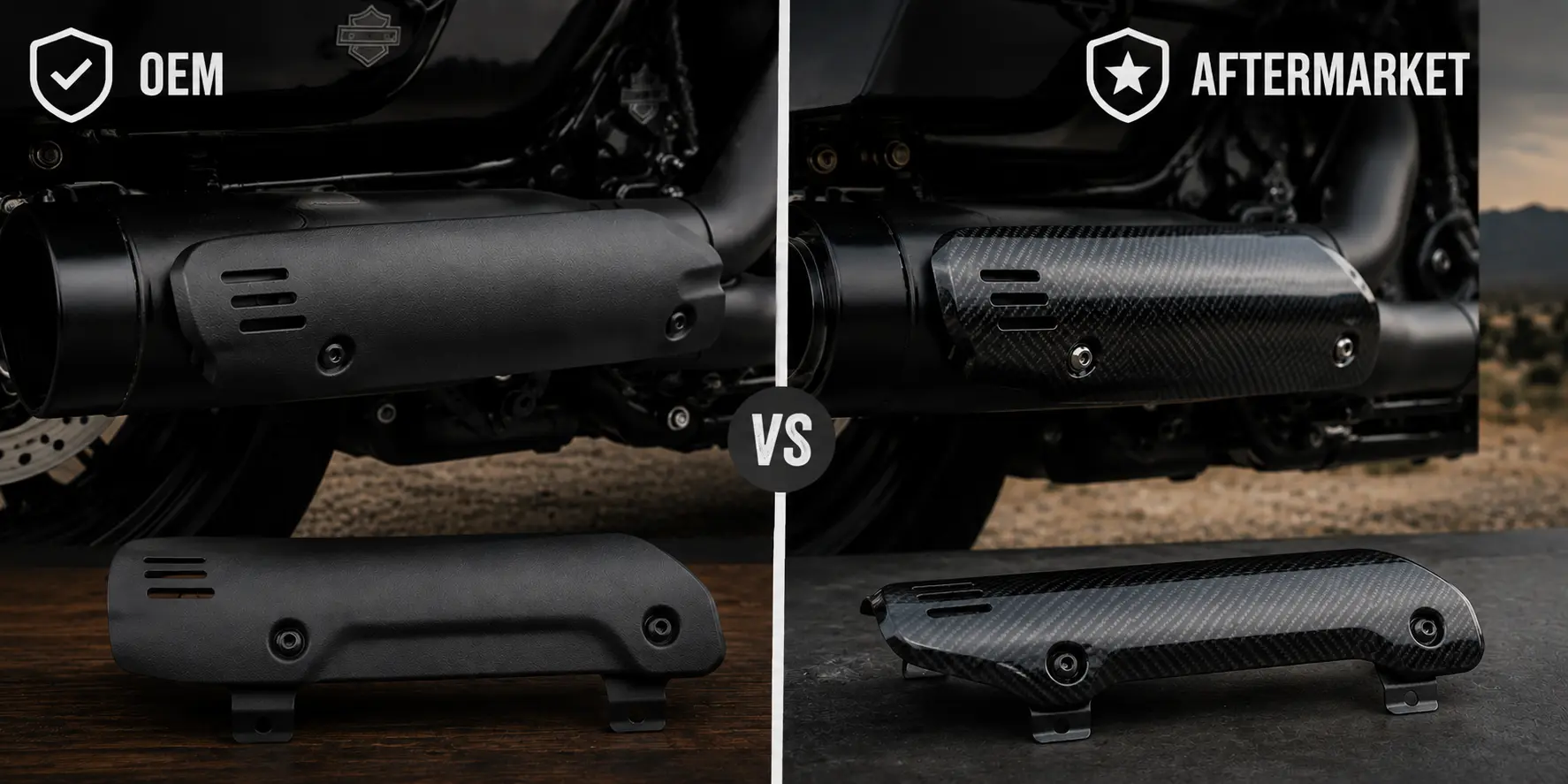

OEM vs Aftermarket Heat Shield for the FLTRX 2018 to 2023
OEM Harley-Davidson heat shields carry significant dealer markup on touring accessories. Quality aftermarket shields for the FLTRX use equivalent stainless or chrome steel construction with matched mounting points for a direct-fit replacement.
The critical specification to confirm is the mounting hole pattern and shield profile for your specific model year. The 2018 to 2023 FLTRX uses a specific profile that differs from the FLHX Street Glide, even though the two bikes share many components.
| Aliwheels stocks the direct-fit Harley-Davidson Road Glide FLTRX Exhaust Heat Shield for model years from 2018 to 2023. Perfectly matched mounting points, stainless construction, and priced well below dealer retail. Ships free on orders over $300 to anywhere in the US. |
Get the exact-fit replacement at the Harley-Davidson Road Glide FLTRX Exhaust Heat Shield 2018-2023. You can browse the full Motorcycle Exhaust category for heat shields, header pipes, and exhaust accessories across all makes.
For Harley-specific components, the Harley-Davidson Parts category covers the full Road Glide range. And for all Motorcycle Parts needs, Aliwheels‘ team is available 24/7.
Conclusion
The exhaust heat shield on the Harley-Davidson Road Glide FLTRX does far more than improve appearance. It plays an important role in rider comfort, thermal management, and protection from exhaust-related heat exposure. Whether the problem stems from corrosion, vibration, heat fatigue, impact damage, or simple age, ignoring a failing heat shield can lead to larger issues and unnecessary safety risks. Regular inspections and prompt replacement at the first signs of looseness, cracking, or corrosion will help maintain your bike’s reliability and comfort. Choosing a quality direct-fit replacement ensures proper fitment, secure mounting, and long-term durability, keeping your Road Glide ready for every mile ahead.
Frequently Asked Questions: FLTRX Exhaust Heat Shield
Q: How often should I replace the heat shield on my Road Glide FLTRX?
A: There is no fixed interval. Inspect it every season. Most shields on regularly ridden FLTRX bikes need replacement between 40,000 and 60,000 miles, or when physical damage or mounting failure is visible.
Q: Can I ride the Road Glide without the heat shield temporarily?
A: Technically yes, but it is not recommended. Without the shield, your right leg is exposed to radiant exhaust heat, and heat soak of surrounding wiring and components increases significantly. Replace it as soon as possible.
Q: Will an aftermarket heat shield void my Harley warranty?
A: A heat shield replacement with a direct-fit aftermarket part does not void the powertrain warranty under the Magnuson-Moss Warranty Act, provided the part does not damage covered components. Check with your dealer if your bike is still under factory warranty.
Q: My shield keeps coming loose after I retighten it. What is wrong?
A: This is usually a stripped thread in the mounting hole on the exhaust pipe. Clean the threads with a thread chaser tool and use fresh bolts with medium-strength thread-locking compound. If the threads are damaged beyond repair, a helicoil insert is the correct fix.
Q: Does the 2018 heat shield fit 2023 FLTRX models?
A: The 2018 to 2023 FLTRX uses the same exhaust heat shield mounting configuration across this model year range. However, always confirm with your VIN before ordering to account for any mid-production specification changes.
